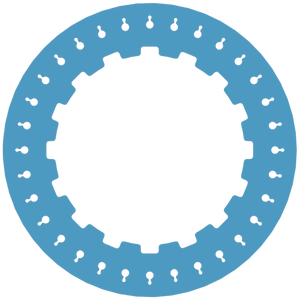

Spline Beadlock

Features:

• 32 bolt, weld-on beadlock rings.
• Grade 8 Hardware Kit Included
• Choice of 3/16" or 1/4" thick steel
• Available to fit 15, 16, 16.5, 17, and 20 inch steel wheels
• Fits within the lip of the wheel, not on the outer edge
• No cutting of the outer lip of the wheel needed
• Includes our Integrated Anti-Coning
• Included our Automatic Drain Technology (allows water to drain from behind the beadlock rings)

Beadlocks ordered with Grade 8 Hardware, and with our Gen1 Bolt Protectors will ship with holes intended for 3/8" through holes.

Beadlocks ordered with our Gen2 Bolt Protectors will ship with larger holes in the outer rings to accommodate the recessed bolt protectors.

Each Beadlock Kit Includes:

(1) Inner Ring (Welds to your steel wheel)
(1) Outer Ring (Bolts to the inner ring to clamp the tire bead to the wheel)
(1) Hardware Kit (Option to add Gen1 or Gen2 Bolt Protectors)

**Order one kit per wheel**

Optional Bolt Protector Kits Include:

Gen 1:(16) 6061-T6 Aluminum Bolt Protectors (fits every other bolt) and comes with the standard Grade 8 Hardware Kit

Gen2: (32) 6061-T6 Aluminum Recessed Bolt Protectors (fits every bolt) includes Stainless Steel Socket Head Cap Screws instead of the Standard Grade 8 Hardware Kit

Optional Balancing Beads:

Sold in packs for 35" to 38", 39" to 42", and 43" to 44" tires. Our balancing beads come in an amount we have found to work with most applications. Some tire wheel combinations are difficult or impossible to balance. We do not guarantee this will balance all tire wheel combinations.

Optional Inner Bead Sectional Wheel Stiffeners:

Includes four sections of Inner Wheel Stiffeners to install on the inside lip of your steel wheels, providing the ultimate inner wheel protection. Fits most brake combinations.
