Magnitude 205

SKU:
Magnitude 205
$1,999.00
(5 reviews)
Current Stock:
Adding to cart… The item has been added

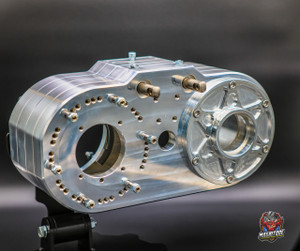

Magnitude 205 Kit



Our Magnitude 205 was built out of the need to have the smoothest shifting transfer case on the market. From the start of Magnitude we set out to have the finest transfer case on the market with features not found on any other case. We made a list of must-have features and we exceeded all of our goals. Our shifting mechanism is the smoothest on the market, featuring 4140 heat-treated shift rails and 100% internal shift interlocks and detents all contained within the main case body. The Magnitude 205 case body is split near the center of the housing rather than on the flange surface to increase the strength of the case bodies and allow easier assembly. Other industry-leading features include an integrated idle shaft cover increasing idle shaft bearing oil flow, oil sight tube standard, along with custom zinc plated hardware for rust prevention.

Key Features:

  • 6061 billet aluminum case bodies not a cast housing
  • Switchable drivers or passenger drop
  • Supports stock or Lomax 3-1 gears
  • AR-500 shift forks machined post welding for precise shifting
  • 100% internal shift interlocks
  • Zero, negative 7, and negative 14 deg clocking
  • Fits both 6-bolt round patterns
  • 4140 heat-treated shift rails
  • 4140 pre-hard shift interlocks
  • O-rings where applicable
  • Fits 90MM input bearing and 80MM front and rear output bearings
  • Jack bolts to aid in splitting the cases should service be needed.
  • Integrated rear idle shaft plate, with extended bore depth to add oil flow capacity to the idle shaft bearings.
  • Oil Sight Tube
  • Made in the USA

Includes: Front and Rear Case Bodies, Two Shift Forks, Two Shift Rails, Two Shift Interlock Pins, Two Shift Interlock Covers, Adjustable Detents, Front Output Bearing Housing, Sight Tube, O-rings, and Hardware Kit.

**This is a DIY case for you to install your gears, bearings, seals, shafts, etc.**







Reviews

  • 5
    Performance in the Rocks and at Speed

    Posted by Matt Vickers on Jul 5th 2024

    We beat on this case in Ultra4 and desert-style racing and it hasn’t flinched. The ability to go from front dig to 4WD low instantly without binding is something I didn’t realize I needed until I had it. Magnitude has raised the bar, this is the future of transfer cases.

  • 5
    Replaced My Atlas Without Regrets

    Posted by Cody on May 29th 2024

    I swapped out my Atlas for the Magnitude 205 after seeing a buddy run it. The difference in shifting alone was night and day. Absolutely a game-changer for my rig.

  • 5
    Solved Every Problem I Had with My Old Case

    Posted by Brian Steele on Apr 22nd 2024

    My last case constantly hung up when shifting and felt loose even when new. The Magnitude 205 fixed all of that. Positive shifts, compact design, and zero compromises on strength. I only wish I’d switched sooner.

  • 5
    Unreal Quality, Worth Every Penny

    Posted by James R. on Mar 14th 2024

    I’ve run just about every case out there and nothing compares to the build quality of the Magnitude 205. The machining is flawless, everything fits together perfectly, and the shifting is smoother than anything I’ve used. You can tell this was built by people who actually understand what hardcore off-roading demands. I’ll never go back to anything else.

  • 5
    The Best DIY Kit I’ve Built

    Posted by Jeremy Thompson on Feb 6th 2024

    I went with the DIY kit and was blown away by how well everything was packaged, labeled, and machined. Instructions were clear, tolerances were tight, and everything went together without a single issue. It’s rare to get this level of precision in a kit form. Total Metal crushed it with this one.
