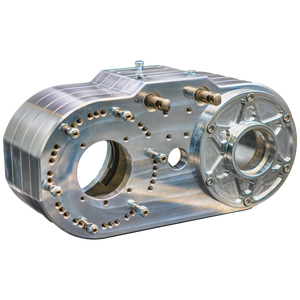

Assembled Magnitude 205

Our Magnitude 205 was built out of the need to have the smoothest shifting transfer case on the market. From the start of Magnitude we set out to have the finest transfer case on the market with features not found on any other case. We made a list of must-have features and we exceeded all of our goals. Our shifting mechanism is the smoothest on the market, featuring 4140 heat-treated shift rails and 100% internal shift interlocks and detents all contained within the main case body. The Magnitude 205 case body is split near the center of the housing rather than on the flange surface to increase the strength of the case bodies and allow easier assembly. Other industry-leading features include an integrated idle shaft cover increasing idle shaft bearing oil flow, oil sight tube standard, along with custom zinc plated hardware for rust prevention.

Features:

• 6061 billet aluminum case bodies not a cast housing
• Switchable drivers or passenger drop
• Supports stock or Lomax 3-1 gears
• AR-500 shift forks machined post welding for precise shifting
• 100% internal shift interlocks
• Zero, negative 7, and negative 14 deg clocking
• Fits both 6-bolt round patterns
• 4140 heat-treated shift rails
• 4140 pre-hard shift interlocks
• O-rings where applicable
• Fits 90MM input bearing and 80MM front and rear output bearings
• Jack bolts to aid in splitting the cases should service be needed.
• Integrated rear idle shaft plate, with extended bore depth to add oil flow capacity to the idle shaft bearings.
• Oil Sight Tube
• Made in the USA

**This is a fully assembled Magnitude 205**

Assembly Choices:

• Passenger or Driver side drop
• Stock 1.96 to 1 or Lomax 3 to 1 low range reduction
• Input spline options vary based on stock or Lomax gearing selected see options above.
• 32 spline outputs front and rear.
• Output yoke / flange options include 1310 CV-Style, 1310 Non-CV, 1350 CV-Style, 1350 Non-CV, 1350 Output Flange, 1410 Non-CV, Toyota Flange
• Rear output housing with or without an optional vehicle speed sensor.

And we toss in a free T-shirt with Magnitude purchase!
